How Accurate Are Ultrasonic Thickness Meters?

When it comes to measuring the thickness of materials, accuracy is a critical factor in ensuring reliable data and making informed decisions. Ultrasonic thickness meters are widely used across various industries, from manufacturing to construction, for their ability to measure the thickness of materials without damaging or disrupting the structure. These meters utilize high-frequency sound waves to assess the thickness of a material, offering a non-destructive testing (NDT) solution that is both efficient and effective.

But how accurate are ultrasonic thickness meters? This question is central to understanding their value in different applications, such as quality control, maintenance, and research.

1. Understanding Ultrasonic Thickness Meters

Before diving into accuracy, let’s first understand how ultrasonic thickness meters work.

Ultrasonic thickness meters operate on the principle of sending high-frequency sound waves through a material and measuring the time it takes for the waves to travel through and bounce back. The time taken by the sound waves to return to the sensor is proportional to the thickness of the material being measured. This is because the sound waves travel at different speeds depending on the material’s density and properties.

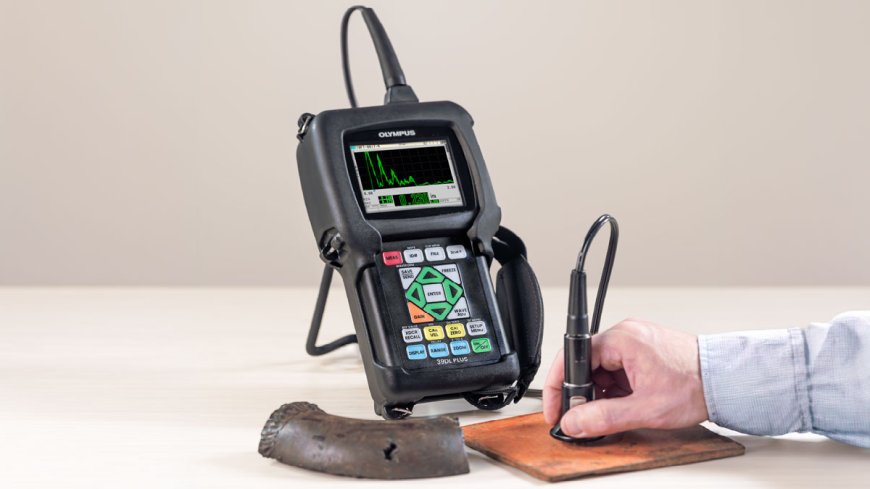

In practical terms, ultrasonic thickness meters consist of a probe (also called a transducer) that emits sound waves into the material being tested. The meter calculates the material thickness by analyzing the time delay between emission and reception of the sound waves, often using a digital display to present the reading.

2. Factors Affecting the Accuracy of Ultrasonic Thickness Meters

Several factors can influence the accuracy of ultrasonic thickness meters. These factors range from material properties to environmental conditions, and understanding them is crucial for obtaining precise measurements. Below, we outline some of the most important variables that can impact accuracy.

Material Type and Properties

The accuracy of ultrasonic thickness measurements is heavily influenced by the type of material being tested. Ultrasonic waves travel at different speeds depending on the material’s density, composition, and elasticity. For example, the speed of sound in steel is different from that in aluminum or plastic, and this will affect the thickness reading.

• Steel and other metals: These are among the most common materials measured using ultrasonic thickness meter, and the meters typically offer very accurate readings on metals like steel, stainless steel, and iron. These materials are well-understood by ultrasonic devices, so they provide highly reliable data.



• Composites and plastics: For composite materials, plastics, and coatings, ultrasonic meters might face greater challenges in providing accurate readings, depending on the consistency and homogeneity of the material. Variations in material composition can influence sound wave transmission, making it more difficult to achieve precise measurements.



• Coatings and non-metallic materials: Some ultrasonic thickness meters are equipped with dual sensors for measuring coatings (like paint or corrosion) on metallic substrates. The accuracy of such measurements depends on the type and uniformity of the coating and the ability of the meter to differentiate between the coating and the underlying material.



Surface Condition of the Material

The surface condition of the material being measured is another critical factor that can influence the accuracy of ultrasonic thickness measurements. A smooth, clean surface allows sound waves to travel through the material more effectively, leading to accurate readings. However, rough, uneven, or corroded surfaces can scatter sound waves, resulting in less accurate readings.

• Smooth vs. rough surfaces: For optimal results, ultrasonic thickness meters should be used on smooth, clean surfaces. Surface roughness can cause diffraction of the sound waves, leading to inaccuracies. In such cases, many ultrasonic meters allow users to adjust settings to compensate for surface roughness, though this may still not yield perfectly accurate results.



• Surface coatings: When measuring coatings on metal surfaces, the condition of the coating itself (e.g., thickness, uniformity) plays a significant role. If the coating is too thin or has defects, the readings may be inconsistent or inaccurate.



Temperature

The temperature of the material being measured can also affect the accuracy of ultrasonic thickness meters. The speed of sound in a material is temperature-dependent, meaning that temperature fluctuations can cause variations in the measurement. For example, if the material being tested is too cold or too hot, the sound waves may travel faster or slower than anticipated, leading to inaccurate readings.

To minimize temperature-related errors, many ultrasonic thickness meters come with built-in temperature compensation features. However, significant temperature changes still have the potential to affect measurement accuracy. It is always advisable to measure at consistent temperatures or calibrate the meter according to the material’s temperature.

Calibration and Maintenance

Calibration is a vital factor for ensuring the accuracy of ultrasonic thickness meters. Like any precision instrument, ultrasonic meters require regular calibration to ensure that the readings they provide are accurate. Calibration involves adjusting the device to match known thickness standards, typically performed using reference blocks made from materials with known thickness and properties.

Inaccurate or improperly calibrated devices can provide faulty readings, so routine calibration checks are necessary to maintain the meter’s accuracy. Furthermore, ultrasonic meters require periodic maintenance, such as probe cleaning and testing, to ensure the equipment is functioning optimally. Without proper care and regular calibration, even the most advanced ultrasonic thickness meters may fail to provide reliable results.

Frequency of Sound Waves

Ultrasonic thickness meters use sound waves at different frequencies depending on the material being tested. Higher frequencies are typically used for thin materials, while lower frequencies are employed for thicker materials. The frequency of sound waves affects their ability to penetrate materials and return a reliable measurement.

• Low-frequency meters: These are suitable for measuring thick materials, as the sound waves can penetrate deeper and travel further before being reflected. However, they may have less resolution on thinner materials.



• High-frequency meters: These provide greater resolution and accuracy on thinner materials but are less effective at penetrating thick materials.



Selecting the right frequency for your application is important to achieve accurate readings. Many ultrasonic meters allow users to adjust the frequency based on the material being tested, helping to optimize accuracy.

3. How Accurate Are Ultrasonic Thickness Meters?

The accuracy of ultrasonic thickness meters is typically within a range of ±0.1 mm to ±0.5 mm, depending on the meter’s quality, the material being measured, and the operator’s skill. High-quality, professionally-calibrated devices can achieve accuracy levels within 0.1 mm, making them highly precise for many applications. However, some factors, such as poor surface conditions or challenging material types, may reduce accuracy.

To ensure accuracy, it is important to:

• Use the correct meter for the material: Ensure that the ultrasonic meter is suitable for the specific type of material and thickness range you are working with.



• Calibrate the device regularly: Calibration ensures that your ultrasonic thickness meter is providing the most accurate readings.



• Prepare the surface: For best results, clean and prepare the surface of the material to be tested to ensure sound waves can travel through efficiently.



• Monitor temperature: Pay attention to the temperature of the material and, if necessary, use a temperature-compensating meter or calibrate the device based on the material’s temperature.



4. Real-World Applications and Performance

Ultrasonic thickness meters are widely used in industries such as aerospace, automotive, construction, and energy, where material integrity is critical. In these industries, even small variations in thickness can have significant implications for safety, performance, and regulatory compliance.

For example:

• In the aerospace industry, ultrasonic thickness meters are used to measure the thickness of critical aircraft components, such as fuselage panels, wings, and engine parts, to ensure they meet safety and performance standards.



• In construction, ultrasonic thickness meters are used to assess the condition of concrete structures and steel beams, detecting wear and corrosion that may compromise structural integrity.



• In energy, these meters are often used for inspecting pipelines, pressure vessels, and tanks to detect corrosion and other forms of damage.



In these applications, the accuracy and reliability of ultrasonic thickness meters are crucial, as they directly affect safety, performance, and maintenance schedules.

5. Conclusion

Ultrasonic thickness meters are highly accurate tools for measuring the thickness of materials, with accuracy levels typically ranging from ±0.1 mm to ±0.5 mm, depending on factors such as material type, surface condition, calibration, and the frequency of sound waves used. By understanding the factors that influence accuracy, operators can take steps to ensure the best possible measurements, such as properly preparing surfaces, calibrating the meter regularly, and selecting the appropriate frequency for the material being measured.

The precision of ultrasonic thickness meters makes them invaluable in industries where material integrity is critical. By following best practices and using quality equipment, businesses can achieve highly reliable measurements, reduce the risk of failure, and improve maintenance and safety practices.

Whether you’re inspecting aircraft parts, monitoring corrosion on industrial pipelines, or ensuring the structural integrity of buildings, ultrasonic thickness meters provide an accurate, non-destructive testing method that enhances material assessment and helps maintain safety standards.
