Toggle Clamps Explained: Types, Uses, and Selection Guide

A toggle clamp is a mechanical device used to securely hold a workpiece in place during machining, assembly, or other industrial processes. It is widely used in manufacturing environments, woodworking shops, and even DIY projects to ensure stability and precision. With its ability to exert a strong holding force while being easy to engage and release, the toggle clamp has become a preferred choice in many applications.

What is a Toggle Clamp?

A toggle clamp is a clamping device that utilizes a pivot and lever mechanism to apply force and lock in place. It works based on a toggle action, which means the clamp locks into position once it reaches a specific point in its motion. This over-center locking mechanism ensures that the clamp stays in place even under vibration or load.

Unlike traditional clamps, a toggle clamp does not require continuous pressure to maintain its grip. Once engaged, it stays securely locked, providing consistent clamping force until manually released. This makes it ideal for repetitive tasks where quick setup and release are needed.

Key Components of a Toggle Clamp

A typical toggle clamp consists of the following parts:

• Handle: Used to operate the clamp, moving it between the open and closed positions.



• Clamping Arm: The part that comes into contact with the workpiece and applies force.



• Base Plate: Mounted to a workbench or jig, it serves as the foundation for the clamp.



• Linkage System: A set of pivoted links that provide the toggle action.



• Spindle or Pressure Pad: Often adjustable, it ensures even contact with the workpiece.



These components work together to provide a strong, stable grip that can be engaged or disengaged quickly.

Types of Toggle Clamps

Toggle clamps come in various types, each designed for specific clamping needs. The main types include:

1. Horizontal Toggle Clamp:
   This type has a handle that lies flat when the clamp is engaged. It is suitable for applications where vertical space is limited. Horizontal toggle clamps are commonly used in jigs and fixtures for woodworking and metalworking.

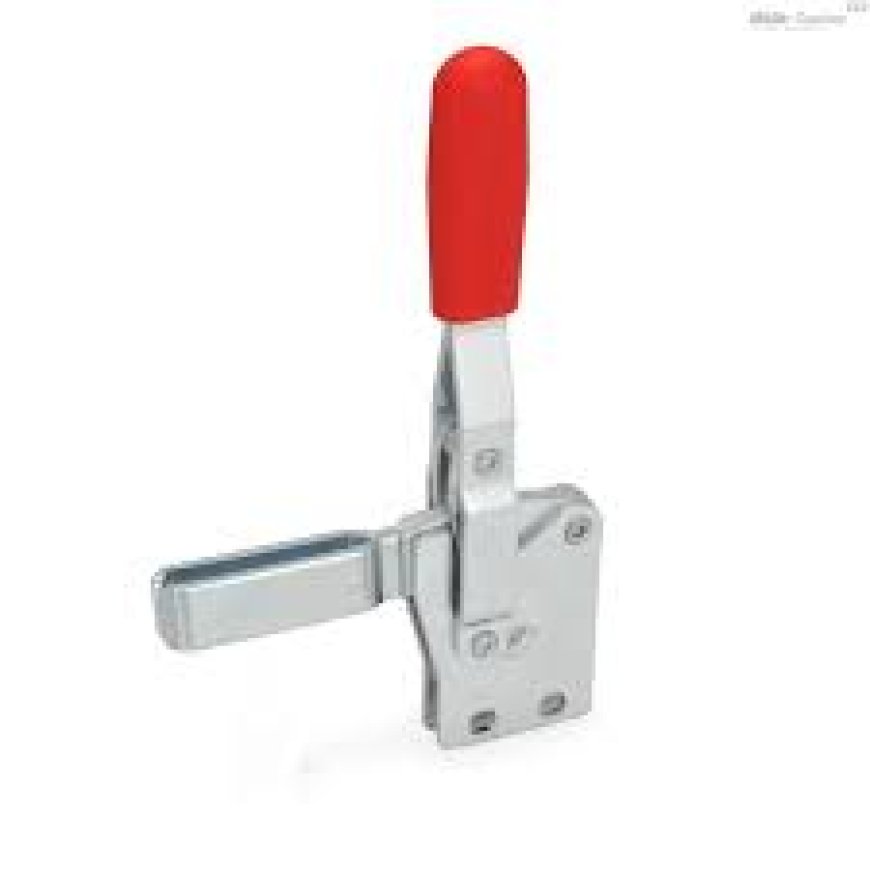

2. Vertical Toggle Clamp:
   With a handle that stands upright when engaged, vertical toggle clamps are ideal when downward pressure is needed. These are often used in drilling, welding, and assembly operations.



3. Push-Pull Toggle Clamp:
   In this variation, the handle moves in a straight line to push or pull the clamping arm. It is often used when space constraints prevent the use of rotating handles. Push-pull clamps are useful in molds, fixtures, and door latching systems.



4. Latch-Type Toggle Clamp:
   This clamp features a latch mechanism, making it suitable for securing doors, lids, or covers. Latch toggle clamps are common in enclosures, toolboxes, and transport containers.



5. Pneumatic Toggle Clamp:
   These are powered by air pressure and are ideal for automated systems. Pneumatic toggle clamps are used in assembly lines and robotic systems where speed and consistency are important.



Applications of Toggle Clamps

Toggle clamps are versatile tools used across multiple industries for various purposes. Some common applications include:

• Machining and Fabrication: Toggle clamps hold workpieces securely on milling machines, drill presses, and welding tables. They ensure accuracy by preventing movement during operations.



• Woodworking: In woodworking shops, toggle clamps are used in jigs for cutting, sanding, and routing. They help in achieving consistent results and enhance safety.



• Assembly and Inspection: Toggle clamps are used to hold parts together during assembly or to position items for inspection. They streamline processes and reduce fatigue from manual holding.



• Packaging and Transportation: Latch-type toggle clamps are ideal for securing doors or panels during transport, ensuring that items remain safely enclosed.



• DIY Projects: Home hobbyists often use toggle clamps in small-scale projects or custom fixtures to hold materials in place while working.



Advantages of Using a Toggle Clamp

There are several reasons why toggle clamps are preferred over other types of clamping devices:

• Quick Operation: The toggle mechanism allows for fast clamping and release, making it ideal for repetitive tasks.



• Consistent Pressure: Once set, the clamp provides uniform pressure every time, ensuring reliable performance.



• Safety: The over-center locking action prevents accidental release, even under vibration or load.



• Versatility: Available in various sizes and designs, toggle clamps can be adapted to suit nearly any project or setup.



How to Choose the Right Toggle Clamp

When selecting a toggle clamp, consider the following factors:

• Holding Capacity: Determine the amount of force required to hold the workpiece. Toggle clamps come with specified holding capacities to match different needs.



• Type of Operation: Choose the clamp type that suits the motion and space requirements of your application, whether it's vertical, horizontal, push-pull, or latch.



• Material and Durability: For industrial or outdoor use, select clamps made from high-quality steel or stainless steel for corrosion resistance and longevity.



• Mounting and Adjustability: Check how the clamp mounts to your surface and whether it offers adjustability for different workpiece sizes.



Conclusion

A toggle clamp is a powerful and efficient tool for securely holding workpieces in place during various operations. With multiple types available, including vertical, horizontal, push-pull, and latch styles, toggle clamps are adaptable to nearly any industrial or DIY application. Their quick-action locking mechanism, consistent force, and safety features make them a staple in manufacturing, woodworking, metalworking, and more. By understanding the different types and selecting the right toggle clamp for your needs, you can greatly improve both precision and efficiency in your projects.
