This article is practical guide for anyone looking to set up and work with a SOAP API. It is based on my own experience, and aims to provide clear steps, useful tips, and highlight some of the common challenges I encountered along the way.

Tools

For this tutorial we will be needing:

• .Net 8
• Postman

Contents

• About
• Contents
• What is SOAP API?
  • Key Features
• Project preconditions
• Model
  • DataContract example
  • XMLSerialization example
• Soap service
  • Implementation
  • Configuration
  • What is WSDL?
  • How to Read a WSDL?
• How to Call a SOAP API?
  • Postman example
• Final words

What is SOAP API?

SOAP API (Simple Object Access Protocol) is a protocol used to exchange information between systems over a network using HTTP. It's one of the ways web services can communicate with each other, often used in enterprise applications.

Key Features

• Protocol-based - SOAP is a standard protocol, It follows strict rules defined by the W3C.
• XML Format
• WSDL (Web Services Description Language) - SOAP use WSDL files to describe the service – what operations it provides, input/output types, and how to access it.

Project preconditions

Install SoapCore nuget package

dotnet add package SoapCore

With this packed installed we are ready to create example model for our project.

Model

For the sake of this article we will use basic model of Invoice.

In .NET, there are two primary approaches for serializing objects to XML: DataContractSerializer and XmlSerializer. For new development, DataContractSerializer is generally recommended due to its superior performance, support for complex object graphs, and ability to serialize private members. However, in legacy systems or scenarios requiring strict adherence to specific XML schemas, XmlSerializer may be necessary, as it offers greater control over the XML output and is compatible with a broader range of existing XML standards. In this article, we will explore both serializers to understand their respective use cases and implementation details

DataContract example

This example demonstrates how to implement DataContract and DataMember attributes for serializing objects in SOAP services using DataContractSerializer.

• DataContract: Applied to classes to indicate they are serializable. This tells the serializer which types should be included in the SOAP message.
• DataMember: Applied to class properties to mark them for serialization. Only properties marked with this attribute are included in the serialized XML.

[DataContract]
public class Invoice
{
    [DataMember]
    public required int InvoiceNumber { get; set; }
    [DataMember]
    public required string CustomerName { get; set; }
    [DataMember]
    public required DateTime InvoiceDate { get; set; }
    [DataMember]
    public ICollection Items { get; set; } = new List();
}

[DataContract]
public class InvoiceItem
{
    [DataMember]
    public string? Description { get; set; }
    [DataMember]
    public required int Quantity { get; set; }
    [DataMember]
    public required decimal UnitPrice { get; set; }
}

[DataContract]
public class GetInvoice
{
    [DataMember]
    public required int InvoiceNumber { get; set; }
}

XMLSerialization example

For XmlSerializer situation is the same but we use XmlType and XmlElement:

• XmlType: Applied to classes to define the XML schema for the object. It marks the class as serializable to XML.
• XmlElement: Applied to class properties to specify which properties should be included in the serialized XML and how they should appear in the XML structure.

[XmlType]
public class XmlInvoice
{
    [XmlElement]
    public required int InvoiceNumber { get; set; }
    [XmlElement]
    public required string CustomerName { get; set; }
    [XmlElement]
    public required DateTime InvoiceDate { get; set; }
    [XmlElement]
    public ICollection Items { get; set; }
}

[XmlType]
public class XmlInvoiceItem
{
    [XmlElement]
    public string? Description { get; set; }
    [XmlElement]
    public required int Quantity { get; set; }
    [XmlElement]
    public required decimal UnitPrice { get; set; }
}

[XmlType]
public class GetXmlInvoice
{
    [XmlElement]
    public required int InvoiceNumber { get; set; }
}

Soap service

With our model in place, we can proceed to implement the service. A service defines the methods that clients can invoke via SOAP. Each service consists of one or more OperationContracts, which represent operations exposed to remote clients.

Implementation

Implementing a SOAP service in .NET is straightforward. First, we import the System.ServiceModel namespace. Then, we define an interface decorated with the ServiceContract attribute, and annotate each method intended for remote access with the OperationContract attribute.

Example

using System.ServiceModel;

[ServiceContract]
public interface IInvoiceService
{
    [OperationContract]
    public IEnumerable GetInvoices(GetInvoice invoice);
}

When we have interface ready all we need to do is implement this interface.

public class InvoiceService : IInvoiceService
{
    public IEnumerable GetInvoices(GetInvoice invoice)
    {
        return [
            new Invoice()
            {
                CustomerName = "Jhon",
                InvoiceDate = DateTime.Now,
                InvoiceNumber = 1,
                Items = [
                    new InvoiceItem()
                    {
                        Description = "Pen",
                        Quantity = 1,
                        UnitPrice = 21.37M
                    }
                ]
            },
            new Invoice()
            {
                CustomerName = "Tom",
                InvoiceDate = DateTime.Now,
                InvoiceNumber = 1,
                Items = [
                    new InvoiceItem()
                    {
                        Description = "Cars",
                        Quantity = 1,
                        UnitPrice = 22.12M
                    }
                ]
            }
        ];
    }
}

Configuration

Now that our SOAP service is ready, the next step is to register it in the ASP.NET application. First we need to register our service to dependency injection (DI) container. Then we need to add endpoint to our service.

During endpoint registration, we need to configure two key properties: SoapSerializer and Path.

• SoapSerializer: This should be set according to the serialization method used—either DataContractSerializer or XmlSerializer.
• Path: This specifies the URL path where the service will be accessible. For example, if we set the Path to "/XmlServicePath.asmx", the service can be accessed at https://localhost/XmlServicePath.asmx.

var builder = WebApplication.CreateBuilder(args);

builder.Services.AddSoapCore();
builder.Services.AddSingleton();
builder.Services.AddSingleton();

var app = builder.Build();

app.UseRouting();

app.UseEndpoints(endpoints => {
    _ = endpoints.UseSoapEndpoint(opt =>
    {
        opt.Path = "/XmlServicePath.asmx";
        // Set SoapSerializer to XmlSerializer when using XmlSerializer
        opt.SoapSerializer = SoapSerializer.XmlSerializer;
    });
    _ = endpoints.UseSoapEndpoint(opt =>
    {
        opt.Path = "/ServicePath.asmx";
        // Set SoapSerializer to DataContractSerializer when using DataContractSerializer
        opt.SoapSerializer = SoapSerializer.DataContractSerializer;
    });
});

With the service set up, we can now launch the application. Open a web browser and navigate to your application's base URL, appending /XmlServicePath.asmx or /ServicePath.asmx to access the SOAP endpoint. If everything is configured correctly, you should see a page displaying the service description.

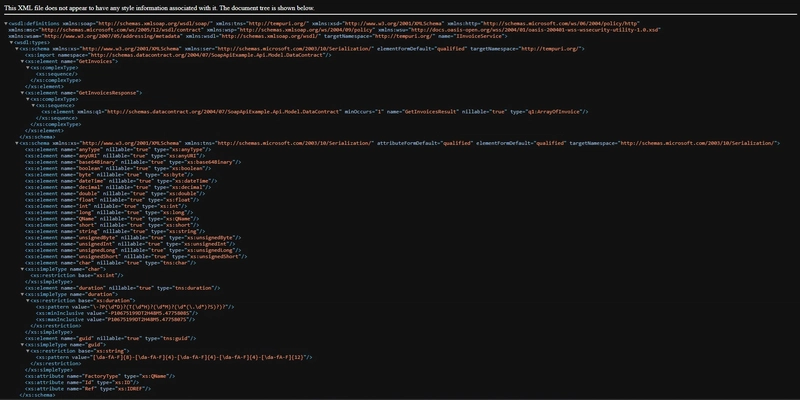

This is WSDL

What is WSDL?

WSDL (Web Services Description Language) is an XML-based document that describes a SOAP web service—including its operations, location (endpoint), and the communication protocols it uses.

How to Read a WSDL?

WSDL files can be read manually, but using tools can make the process easier and more intuitive. Personally, I recommend the Wizdler Chrome extension. It's lightweight and provides a clear overview of the service structure and required inputs. However, many other tools are available to help you inspect and interact with WSDL files, depending on your preferences and development environment.

How to Call a SOAP API?

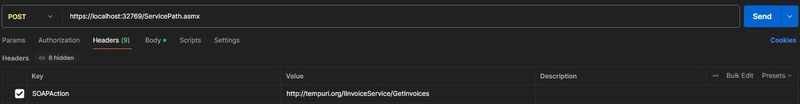

Calling a SOAP API is straightforward. First, add the required HTTP headers:

• SOAPAction: Set this to the specific action you want to call, e.g., http://tempuri.org/IMyService/GetUser
• Content-Type: Set this to text/xml; charset=utf-8

Next, construct the request body. A SOAP message must be wrapped in a SOAP Envelope, which includes a Header (optional) and a Body (required). Here's a basic example:



    {{Your conntent here}}


This Envelope structure is mandatory for every SOAP request.

To test our service we need to make following call.

POST /ServicePath.asmx HTTP/1.1
Host: https://localhost:32769
Content-Type: text/xml; charset=utf-8
SOAPAction: "http://tempuri.org/IMyService/GetUser"





         123

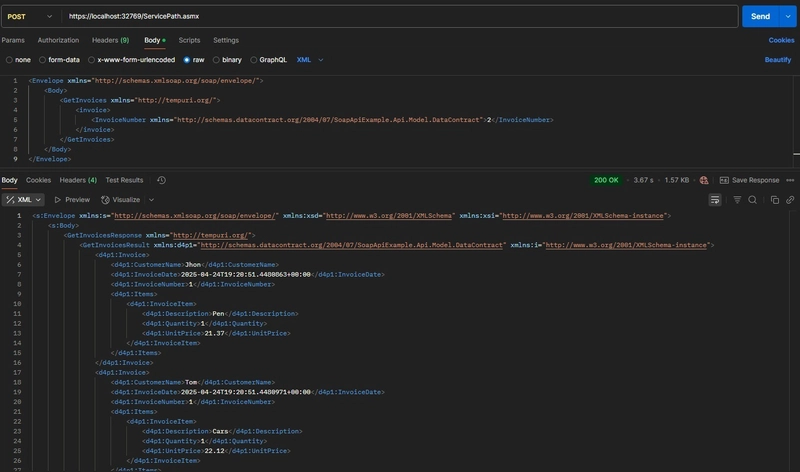

Postman example

Additional Resources

This section includes tools and resources that, while not essential for every project, may prove useful depending on your needs. During the development of my project, I found these items difficult to locate, so I’ve included them here to help others who might encounter similar challenges.

Double encoding of XML

Double encoding in XML refers to the practice of encoding specific characters or entities multiple times, often resulting in a redundant encoding process. This typically manifests in a manner similar to the following.

Normal XML.


    F. Scott Fitzgerald
    Fiction
    1925
    10.99

Now we want to encode our xml. For this we will use table below.

Encoded XML.


    F. Scott Fitzgerald
    Fiction
    1925
    10.99

But now we want to encode once more. This time is easy. We need to add & before every special sign (Table above).

Double encoded XML.

<?xml version="1.0" encoding="UTF-8"?>
<book>
    <title>The Great Gatsby</title>
    <author>F. Scott Fitzgerald</author>
    <genre>Fiction</genre>
    <published>1925</published>
    <price currency="USD">10.99</price>
</book>

This proces can be repeted as many times you want.

XSD

XSD, or XML Schema Definition, is utilized to define the structure, data types, and constraints of XML messages exchanged between web services.

In some cases, you may encounter .xsd files. When this occurs, you can leverage the xsd.exe tool to work with these files. Further details about this tool can be found in the XSD.exe Documentation.

Final words

That concludes this article. You should now be equipped to set up your own SOAP API. If you have any questions or notice any mistakes, please feel free to leave a comment. Best of luck, and enjoy working on your implementation!

Link to my implementation -> https://github.com/TheWerou/SoapCoreExample
